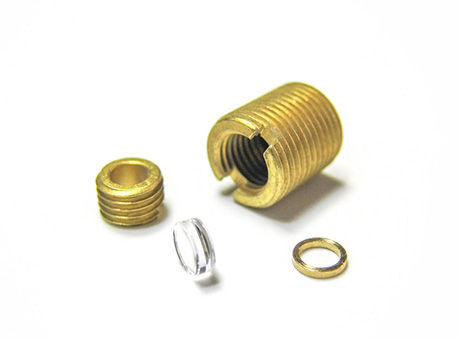

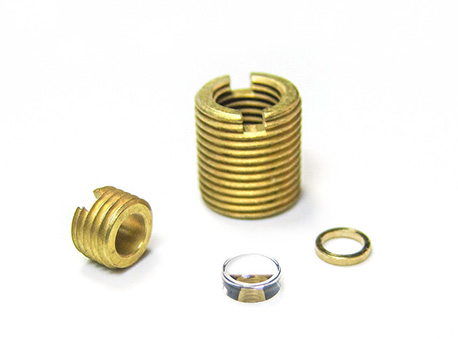

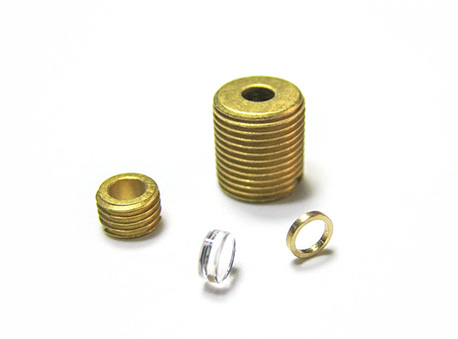

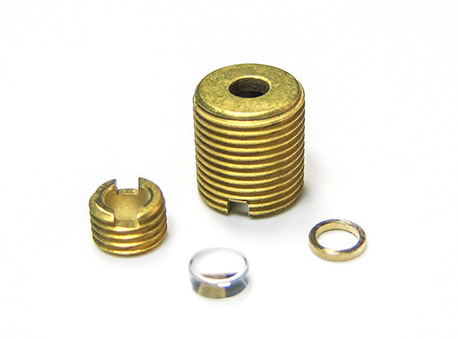

激光准直透镜型号M9P0508F3038-47
二维码

手机扫一扫

陕西赛嘉电子系一家专门致力于光学透镜及半导体激光产品在自动控制、测量定位和数据图像处理等领域应用产品的研制和开发、生产、销售和服务于一体的高新技术企业
在线需求提交
产品规格表
产品特性
应用领域
曲线图片
准直透镜列表
产品名称规格尺寸有效焦距(mm)数值孔径通光孔径(mm)工作距离(mm)设计波长(nm)透过率
材质准直度(mrad)镀膜(nm)
M7P0505F0302-47M7×P0.5×52.00.542.40.7650≥95%D-ZK3***400-700
M9P0505F0302-47M9×P0.5×52.00.542.20.7650≥95%D-ZK3***400-700
M9P0508F0302-47M9×P0.5×82.00.542.40.7650≥95%D-ZK3***400-700
M9P0508F0302-S-47M9×P0.5×82.00.542.20.7650≥95%D-ZK3***400-700
M9P0508F0302-S-47M9×P0.5×82.00.542.21.0650≥95%D-ZK3***400-700
M9P0510F0302-S-47M9×P0.5×102.00.542.20.7650≥95%D-ZK3***400-700
M9P0565F0302-47M9×P0.5×6.52.00.542.20.7650≥95%D-ZK3***400-700
M6P0505F0306-47M6×P0.5×56.00.22.44.71530≥95%D-ZK3***400-700
SJLTF061000-6580M9×P0.5×7.510.00.255.03.88635≥95%D-ZK3***650-800
M9P0506F0612-D-47M9×P0.5×612.00.235.510.14530≥95%D-ZK3***400-700
M9P0508F0612-47M9×P0.5×812.00.235.58.64530≥95%D-ZK3***400-700
M9P0508F0612-D-47M9×P0.5×812.00.235.510.14530≥95%D-ZK3***400-700
M9P0510F0612-D-47M9×P0.5×1012.00.235.54.6530≥95%D-ZK3***400-700
M9P0508F0615-47M9×P0.5×815.00.155.08.88635≥95%D-ZK3***400-700
M9P0508F0708-47M9×P0.5×88.00.335.46.13635≥95%D-ZK2***400-700
M9P0510F0708-47M9×P0.5×108.00.335.46.13635≥95%D-ZK2***400-700
M9P0510F0708A2-47M9×P0.5×108.00.335.42.62635≥95%D-ZK2***400-700
M9P0510F0708B1-47M9×P0.5×108.00.46.56.13635≥95%D-ZK2***400-700
M9P0575F0708-47M9×P0.5×7.58.00.386.02.92635≥95%D-ZK2***400-700
M9P051519F0708-47M9×P0.5×198.00.285.12.66635≥95%D-ZK2***400-700
M9P051519F0708-D-47M9×P0.5×198.00.285.12.66635≥95%D-ZK2***400-700
M12P051421F0708-7011M12×P0.5×218.1010.46.43.278905≥95%D-ZK2***700-1100
M10P0508F0811-47M10×P0.5×811.20.317.08.875635≥95%D-ZK3***400-700
M14P0508F1015-47M10×P0.5×815.180.39.510.35639≥95%L-BAL42***400-700
M6P0505F3038-47M6×P0.5×53.770.32.42.51635≥95%L-BAL35***400-700
M6P0506F3038-47M6×P0.5×63.770.32.42.51635≥95%L-BAL35***400-700
M7P0565F4762-47M7×P0.5×6.56.20.34.03.59633≥95%D-ZK3***400-700
M8P0508F4762-47M8×P0.5×86.20.34.03.59633≥95%D-ZK3***400-700
M9P0508F4762-47M9×P0.5×86.20.34.03.59633≥95%D-ZK3***400-700
M9P0508F4762-S-47M9×P0.5×86.20.34.03.59633≥95%D-ZK3***400-700
M9P0508F4780-47M9×P0.5×88.00.254.05.44530≥95%D-ZK3***400-700
M9P0508F4780-D-47M9×P0.5×88.00.254.02.878530≥95%D-ZK3***400-700
M9P0508F6340-47M9×P0.5×84.050.65.32.23445≥95%D-ZK3***400-700
M9P0508F6340-7011M9×P0.5×84.050.65.32.23445≥95%D-ZK3***700-1100
M9P0508F6340-S-47M9×P0.5×84.050.65.02.23445≥95%D-ZK3***400-700
M9P0510F6340-47M9×P0.5×104.050.65.32.23445≥95%D-ZK3***400-700
M9P0510F6340-7011M9×P0.5×104.050.65.32.23445≥95%D-ZK3***700-1100
M9P0510F6340-S-47M9×P0.5×104.050.65.02.23445≥95%D-ZK3***400-700
M9P0514F6340-BD-47M9×P0.5×144.050.65.02.23445≥95%D-ZK3***400-700
M9P05605F6340-47M9×P0.5×6.54.050.65.32.23445≥95%D-ZK3***400-700
M9P051520F6340-D-47M9×P0.5×19.984.050.65.02.23445≥95%D-ZK3***400-700
M9P0508F6380-S-47M9×P0.5×88.00.335.56.49530≥95%D-ZK3***400-700
M9P051514F6380-D-47M9×P0.5×148.00.335.43.6530≥95%D-ZK3***400-700
M9P0508F635107M9×P0.5×810.00.175.24.71786.5≥95%L-BAL42***786.5±20
M9P0510F273M9×P0.5×1012.8420.195.07.076***≥95%***≥0.4400-700
700-1100
13.3967.512******
13.5547.643******
M9P0510J543M9×P0.5×105.3780.303.42.950***≥95%***≥0.25400-700
700-1100
5.4342.916******
5.4602.923******
M9P0514J048M9×P0.5×144.795±5%0.403.81.711450≥95%***≥0.03400-700
M9P051043M9×P0.5×109.3220.255.03.815***≥95%***≥0.3400-700
700-1100
9.6354.018******
9.7304.087******
M9P051416F273-D-47M9×P0.5×1613.396±5%0.205.32.483650≥95%D-ZK3≥0.3400-700
M9P05105-SM9×P0.5×10.59.3220.255.04.778***≥95%***≥0.3400-700
700-1100
9.6354.981******
9.7305.050******
M9P0508M9×P0.5×89.0010.275.03.535***≥95%***≥0.3400-700
700-1100
9.7954.260******
9.9914.441******
M9P0514J98-BDM9×P0.5×149.0010.275.05.751***≥95%***≥0.3400-700
700-1100
9.7956.476******
9.9916.657******
M9P051614J98-DM9×P0.5×149.0010.275.04.251***≥95%***≥0.3400-700
700-1100
9.7954.976******
9.9916.657******


产品参数
产品名称激光准直透镜
产品型号M9P0508F3038-47
设计波长635nm
有效焦距3.77mm
工作距离2.51mm
数值孔径0.3
准直度≥0.3mrad
通光孔径2.4mm
镀膜A: BBAR Ravg＜1%  From   400-700nm


产品规格书
